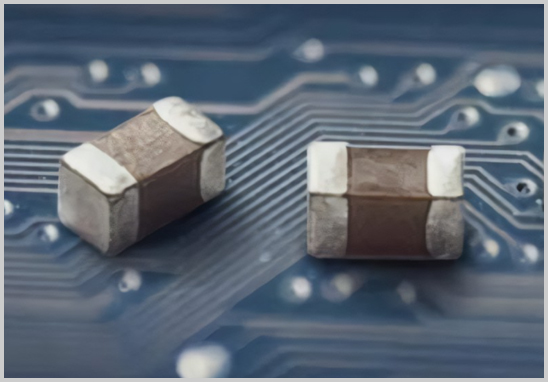

AEC-Q200 是汽車電子委員會 (Automotive Electronics Council, AEC) 制定的標準，專門用于汽車電子元器件的可靠性測試，包括陶瓷電容器。為了確保陶瓷電容器符合AEC-Q200標準，需要進行一系列測試。這些測試旨在驗證元器件在各種極端條件下的性能和可靠性。
優科檢測是具備AEC-Q200標準CNAS全項檢測能力的第三方陶瓷電容器AEC-Q200認證測試機構，接下來為大家介紹陶瓷電容器AEC-Q200認證測試項目及樣品數量要求。
| Table 2: Stress Qualifications for Ceramic Capacitors 陶瓷電容器的應力條件 | |||||||||
| NO. 序號 | Stress 測試內容 | Reference 測試方法 | Minimum Sample Size Per Lot Depending on Component Size (cm3) | Number of lots 批次 | Accept on Number failed 允許不合格數 | ||||
| 樣品體積 <10cm3 Sample Size Per 測試樣品數量 | ≧10cm3 ≦330cm3 | >330cm3 | Individual 單個型號 | Family 系列 | |||||
| 1 | Pre- and Post-Stress Electrical Test 應力測試前后電氣測試 | User Specification. 用戶規范 | 除非另有規定，所有認證器件 All qualification components unless otherwise specified | 0 Fails | |||||
| 2 | Temperature Cycling 溫度循環 | JESD22-A104 | 77 | 26 | 10 | 1 | 3 | 0 Fails | |
| 3 | Destructive Physical Analysis 破壞性物理分析 | EIA-469 | 10 | 5 | 3 | 1 | 3 | 0 Fails | |
| 4 | Humidity Bias 高溫高濕 | MIL-STD-202 Method 103 | 77 | 26 | 10 | 1 | 3 | 0 Fails | |
| 5 | High Temperature Operating Life 高溫工作壽命 | MIL-STD-202 Method 108 | 77 | 26 | 10 | 1 | 3 | 0 Fails | |
| 6 | External Visual 外觀檢查 | MIL-STD-883 Method 2009 | 所有認證器件 All qualification parts submitted for testing | 0 Fails | |||||
| 7 | Physical Dimension 尺寸檢查 | JESD22-B100 | 30 | 10 | 4 | 1 | 3 | 0 Fails | |
| 8 | Terminal Strength（THT） 端子強度 | MIL-STD-202 Method 211 | 30 | 10 | 4 | 1 | 3 | 0 Fails | |
| 9 | Resistance to Solvents 耐溶劑測試 | MIL-STD-202 Method 215 | 5 | 4 | 3 | 1 | 3 | 0 Fails | |
| 10 | Mechanical Shock 機械沖擊 | MIL-STD-202 Method 213 | 30 | 4 | 3 | 1 | 3 | 0 Fails | |
| 11 | Vibration 振動 | MIL-STD-202 Method 204 | 30 | 4 | 3 | 1 | 3 | 0 Fails | |
| 12 | Resistance to Soldering Heat 耐焊接熱 | MIL-STD-202 Method 210 | 30 | 4 | 3 | 1 | 3 | 0 Fails | |
| 13 | ESD ESD靜電測試 | AEC-Q200-002 | 15 | 6 | 3 | 1 | 3 | 0 Fails | |
| 14 | Solderability 可焊性 | J-STD-002 | 15 each condition | 6 | 3 | 1 | 3 | 0 Fails | |
| 15 | Electrical Characterization 電氣特性 | User Specification. | 30 | 10 | 4 | 3 | 3 | 0 Fails | |
| 16 | Board Flex (SMD) 板彎曲（貼片） | AEC-Q200-005 | 30 | 10 | 4 | 1 | 3 | 0 Fails | |
| 17 | Terminal Strength (SMD) 引出端強度（貼片） | AEC-Q200-006 | 30 | 10 | 4 | 1 | 3 | 0 Fails | |
